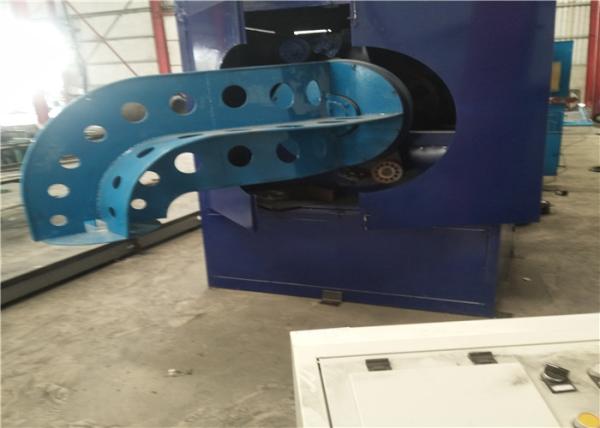

    Inverted Motor 11kw Straight Line Wire Drawing Machine

    High Production Straight Line Wire Drawing Machine


    1. Straight line wire drawing machine description:

    1
    Wire drawing drum material
    Cast steel, tungsten coating and surfacing, HRC60. Roughness is less than 0.8umm
    2
    Drum cooling
    1. Drum inside cooling: drum’s inner wall has 3 water channels which displayed in 120 degrees direction by water spraying.
    2. Drum external cooling: the ventilation pipe below the outside of the drum uses 360 degrees of forced air cooling on the surface of the drum and wire to lower the surface temperature of the reel below 80 degrees
    3
    Die box cooling way
    The drawing die is cooled by using direct water inlet and outlet water, and the cooling effect is especially good
    4
    Tension machine
    Built-in
    5
    Main frame
    Steel plate and square tube welding
    6
    Safety device
    Safety protection cover, broken line stop test
    7
    Vacuum design
    Vacuum cleaning hole
    8
    Lighting
    Each machine is equipped with separate lighting
    9
    Parking brake
    Pneumatic brake
    10
    Electric cabinet
    Protection level IP54
    11
    Electrical system
    Machine distribution structure, PROFIBUS-DP field bus control
    12
    Energy consumption
    Monitoring is equipped with electricity meter
    13
    PLC
    HUICHUAN (Inovance) brand
    14
    Touch screen
    HUICHUAN 10inch screen
    15
    Frequency motor brand
    Fangda
    16
    Low voltage apparatus
    Zhengtai
    17
    Inverter
    HUICHUAN (Inovance) brand
    18
    Sensor
    OMRON
    19
    Field cable supply
    The dedicated control line is provided by the seller, and other control cables and power cables are provided by the buyer

    2. Straight line wire drawing machine parameter:

    ModelBlock Dia.(mm)Max. Draw PassesMax.Inlet Wire Dia. (mm)Min.Outlet Wire Dia. (mm)Motor Power (KW)Max.Outlet Speed(m/s)Noise Level (dBA)
    LZ-200200≤152.20.254.0-5.522≤81
    LZ-250250≤152.60.44.0-7.522≤81
    LZ-300300≤152.80.55.5-7.522≤82
    LZ-350350≤153.50.65.5-1122≤82
    LZ-400400≤154.20.7511-1522≤82
    LZ-450450≤154.50.811-2220≤82
    LZ-500500≤155.01.215-3020≤82
    LZ-560560≤155.5-6.51.322-4520≤82
    LZ-10001000≤15143.590-13215≤82
    LZ-12001200≤15164.090-13214≤82
    LZ-14001400≤15205.590-16010≤82

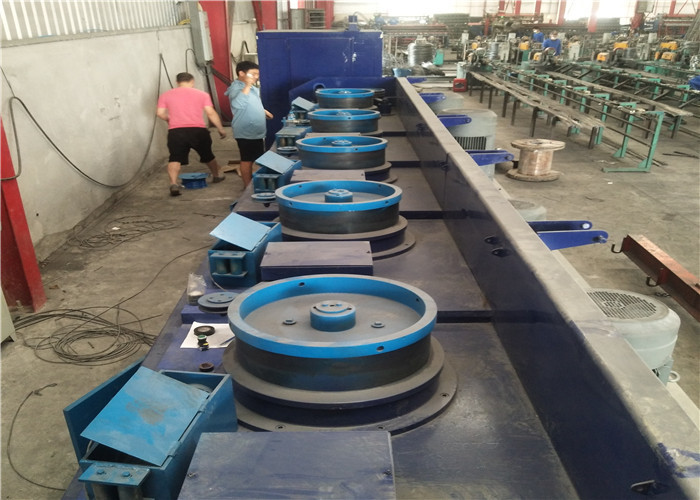

    3. Straight line wire drawing machine advantage:


    PLC: Siemens
    Touch screen: Siemens
    Inverter: Yaskawa, ABB, Schneider, Siemens
    Circuit breakers and contactors: Schneider

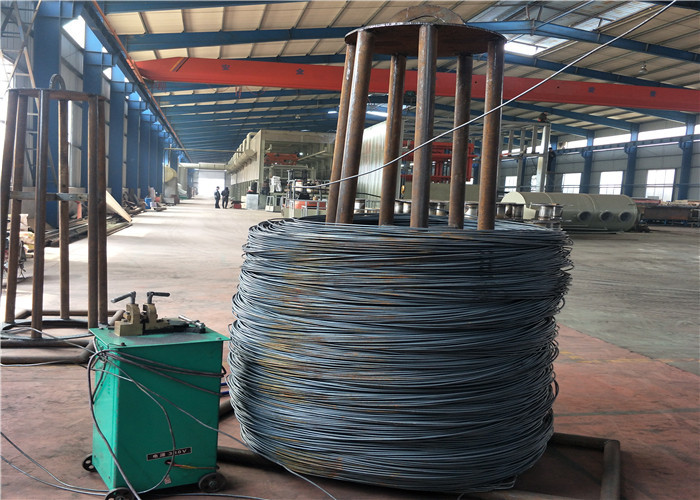

    4. Wire Drawing Production Line:


    pay-off stand----wire descaling machine (pre-treatment)----wire pointing machine----butt welding machine-----wire drawing machine----annealing machine ----spooler take-up
