High Speed Wire Fence Machine / Normal Double Twisted Barbed Wire
Mesh Fence Making Machine
Ordinary barbed wire mesh machine generally refers to the CS - type
A double strands of barbed wire machine,
double strands of barbed wire machine by wire and wire twisting
connection of part of the second, four wire plate.
And form A complete set, the machine is mainly suitable for the
production of various strands of barbed wire mesh,
the use of material should comply with the stability, flexible
operation and reliable, and is currently the only
domestic production of barbed wire mesh equipment.
High Speed Wire Fence Machine / Normal Double Twisted Barbed Wire
Mesh Fence Making Machine usage
Barbed wire with strong anticorrosion performance, long service
life, good defense, and other characteristics,
suitable for factory, private villas, residential buildings on the
ground floor, construction site, Banks, prisons,
print works, military machine, bungalow.

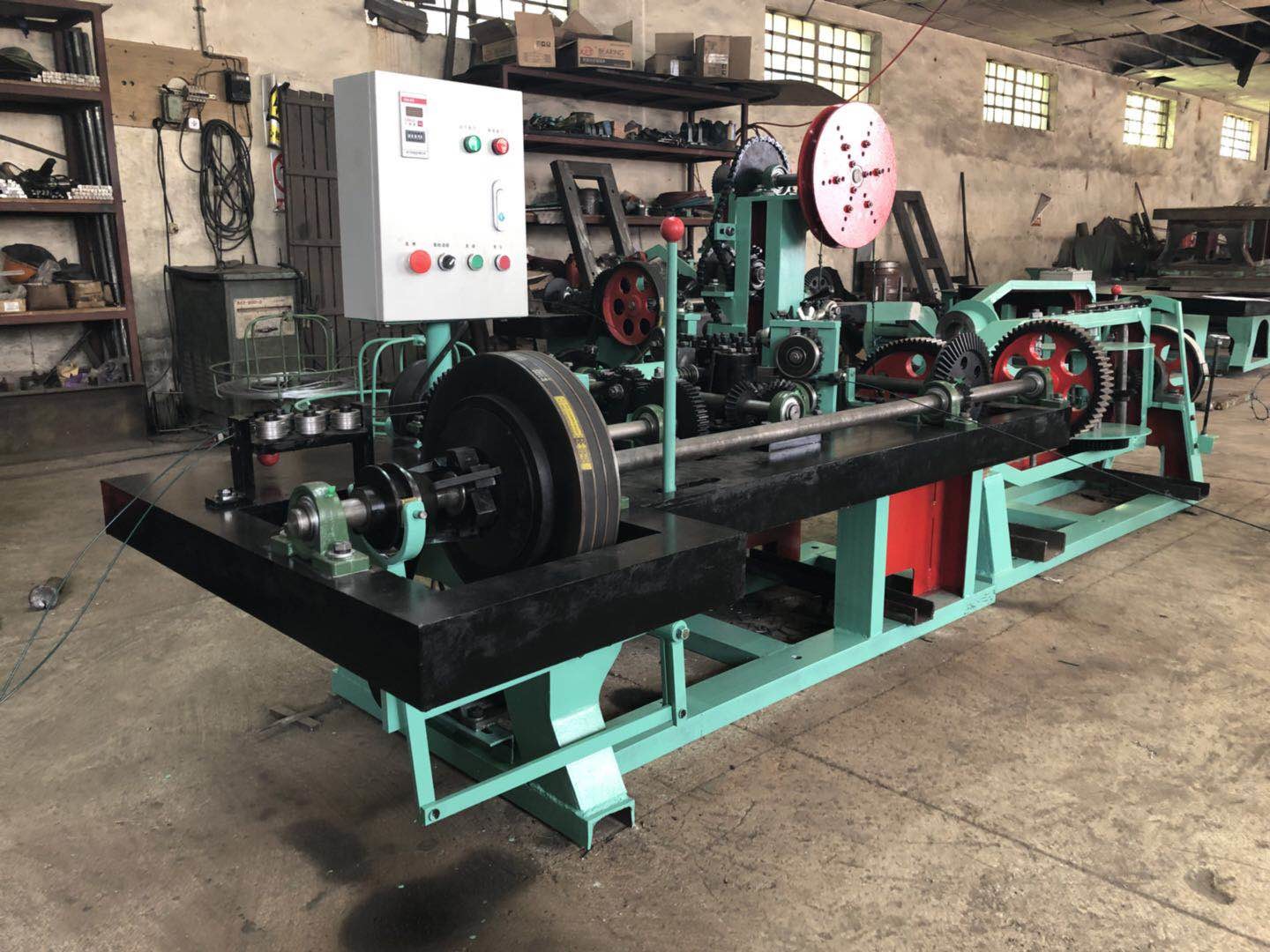

High Speed Wire Fence Machine / Normal Double Twisted Barbed Wire
Mesh Fence Making Machine picture & specification
| Type | CS-A Normal double twisted barbed wire machine |
| Motor(kw) | 3 |
| Voltage(V) | 380 |
| Outside dimension(mm) | Main :2000*1200*1400 Auxiliary:2000*650*800 |
| Weight(kg) | 1000 |
| Main wire diameter(mm) | 2.0-3.0 |
| Barb wire diameter(mm) | 1.8-2.4 |
| Wire tensile strength(N/mm²) | 400—600 |
| Barb distance(inch) | 3’(7.5cm) | 4’(10cm) | 5’(12.5cm) | 6’(15cm) |
| Capacity(m/h) | 675 | 900 | 1125 | 1350 |
| Capacity(kg/h) | 120 (main wire 2.8mm, barbed wire 2.2mm as example) |
| Weight | 1Ton |
Single twisted barbed wire machine picture and specification
| Type | CS-B single twisted barbed wire machine |
| Motor(kw) | 3 |
| Voltage(V) | 380 |
| Outside dimension(mm) | 3000*1200*1500 |
| Weight(kg) | 800 |
| Main wire diameter(mm) | 2.0-3.2 |
| Barb wire diameter(mm) | 1.8-2.4 |
| Wire tensile strength(N/mm²) | 400—600 |
| Barb distance(inch) | 3’(7.5cm) | 4’(10cm) | 5’(12.5cm) | 6’(15cm) |
| Capacity(m/h) | 450 | 600 | 750 | 900 |
| Capacity(kg/h) | 60 (main wire 2.8mm, barb wire 2.2mm as sample) |
Reverse twisted barbed wire machine picture and specification
| Type | CS-C reverse twisted barbed wire making machine |
| Motor(kw) | 3 |
| Voltage(V) | 380 |
| Outside dimension(mm) | 3200*1200*1500 |
| Weight(kg) | 800 |
| Main wire diameter(mm) | 1.6-2.8 |
| Barb wire diameter(mm) | 1.6-2.4 |
| Wire tensile strength(N/mm²) | 1100—1200 (1.6 - 1.8 mm) 800—900 (1.8—2.6mm) 400—500 (2.7—2.8mm) |
| Barb distance(inch) | 3’(7.5cm) | 4’(10cm) | 5’(12.5cm) | 6’(15cm) |
| Capacity(m/h) | 450 | 600 | 750 | 900 |
| Capacity(kg/h) | 30 (main wire 1.6mm, barb wire 1.6mm as sample) |
| Weight | 750kg |
High Speed Wire Fence Machine / Normal Double Twisted Barbed Wire
Mesh Fence Making Machine characteristics
High working speed and efficiency ,can produce barbed wire with
different wire diameter, different wire materials- galvanized wire
and pvc coated wire
High Speed Normal Double Twisted Barbed Wire Mesh Fence Making
Machine After sales service
1. Test the machine before shipment
2. Guarantee time: one year since machine was at buyer's factory
but within 18 months against B/L date
3. Within guarantee time, if any components are broken under normal
condition, we can change for free
4. We can send our best technician to buyer’s factory for
installation, debugging and training
5. Buyer need to undertake double-way air tickets, Visa, Worker
salary USD120.0/ Day, Accommodations
