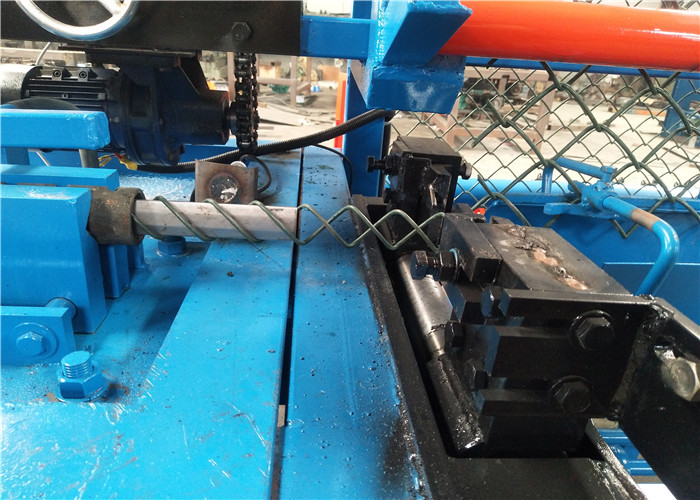

Full Automatic Diamond wire mesh forming machine
1. Full Automatic chain link fence machine
The spider metal wire diamond mesh weaving machine adopt the
principle of weaving double wire from Germany,
though the production efficiency is high and the quality of mesh
sheet is reliable.
The machine design is reasonable, control by the microcomputer and
integration. Automatically complete the spinning, cut,
working procedure and volume net, border closing. The advanced
import craft, the domestically produced machinery price,
which is the ideal choice for the vast users of diamond mesh.
2. Main technical parameter
1, Productivity: 60-90(m/hour)
2, the diameter of steel wire: 2.0mm 4.0mm Spinning radical: Double
wire
3, the introduction: the standard of steel wire is fit for:
GB3081--82 YB544--65
The materials of steel wire: B1F--B3F
4, the width of mesh sheet: 600--2000mm
5, the length of mesh sheet: no matter what eleds
6, power: electrical machine: 3.0KW 4.0KW 0.12KW
3. Semiautomatic chain link fence machine
The machine are operated simple, the technical can control easily,
it adopt the cutting wire artificially, border closing.
The surface of panel is smooth, the function is reliable, services
conveniently, and it is suitable for the small enterprise.
Main technical parameter
a. weaving widthL4m,
b. the aperture of weaving: 30*30 to 100*100mm
c. the max wire diameter of weaving: 4.5mm the min wire diameter of
weaving: 1.5mm
c. power: 5.5kw/set.1.5kv/2set,0.75kg/set
d. Capacity(output): 60-130m2/hour. (for example 40mm hole)
e. power consumption:4c/hour
f. Dinmension: 2.5mx1.6mx6.4m (for example 40mm hole)
g. weight:1.8ton
e. Voltage:380v, 50HZ
f. Mould: with 2 moulds(Material: steel) for free. If you want to
more moulds ,The price 240usd/set, 370usd/set. If the hole more
bigger the price will be more higher.
The life of moulds is about 1 year.
g. Warranty:full machine 1year. Main part for 1 year.
h .Quit-wear part. Mould. Bcz near switch
| Double wire fully automatic chain link fence machine |
| 2m chain link fence machine | 3m chain link fence machine | 4m chain link fence machine |
| wire diameter | 2.0-4.5mm | 2.0-4.5mm | 2.0-4.5mm |
| mesh size | 30-100mm | 30-100mm | 30-100mm |
| material | galvanized wire, pvc coated wire | galvanized wire, pvc coated wire | galvanized wire, pvc coated wire |
| width | 2m | 3m | 4m |
| knuckle or twist | Both are ok |
| capacity | 30-150m2/h |
| voltage | 380V/50HZ |
| motor | main motor 3.8kw cutting machine 1.5kw table reverse motor 1.5kw mesh rolling machine motor 1.5kw |
| type | full automatic |
| power | 4kw/h |
| mould | 4 sets molds for free |
| Size(L*W*H) | 3.8m *3.2m*1.5m | 4.8m *3.2m*1.5m | 5.8m *3.2m*1.5m |
| weight | 1.6T | 1.7T | 1.8T |
| Warranty | one year |
| operation | one person can operate two sets machines |
4. Operating steps:
a. setting the machine;
b. connecting the wire;
c. let the machine working without wire ;
d. Installing the moulds to the machine;
c. bring some wire materials, let the machine work work with the
wire to produce chain link mesh;
e. test the machine to produce chain link mesh normally or not;
5. Service:
We can send you the video for how to operate the machine, and
arrange our engineer to your place to help you adjust the machine
if you need.
6. FAQ
Q:How many years your factory established and how many workers you
have
A:Our factory established nearly 30 years.And we have about 35
workers in our factory now.
Q:What is your machine guarantee time?
A:One year since machine was at buyer's factory but within 18
months against B/L date.But we supply whole-life on line free after
sales service.
Q:What is your after sales service
A:Test the machine before shipment .Within guarantee time, if any
components are broken under normal condition, we can change for
free.We can send our best technician to buyer’s factory for
installation, debugging and training.But buyer undertake charges of
technician’s Salary(USD120.0/DAY),Visa,Airplane
ticket,Accommodations.
