    Electric Steel Binding Wire 0.7-2.0mm Galvanizing Line Wire

    Ask Lasest Price
    Brand Name : OLT
    Model Number : EGL-01
    Certification : ISO
    Price : Negotiable
    Payment Terms : L/C, T/T, Western Union, MoneyGram
    Supply Ability : 3sets/month
    Delivery Time : 60days
    • Product Details
    • Company Profile

    Electric Steel Binding Wire 0.7-2.0mm Galvanizing Line Wire

    Electric Steel Binding Wire 0.7-2.0mm Galvanizing Line Wire :


    Its mainly for galvanizing small wire diameter such as 0.6-1.2mm which is used for construction binding wire.

    Also can be used for making welded wire mesh and chicken mesh.This line total length need 50meter.


    Electric Steel Binding Wire 0.7-2.0mm Galvanizing Line Wire Description:


    Materialssuper low carbon steel
    classifyhot dipped galvanized and electric galvanized
    processdrawing,heating,washing,galvanzing,take up
    packingplastic cloth inside and hessian cloth outside
    normal weight25kgs/roll,50kgs/roll,100kgs/roll,even 500kgs/roll 800kgs/roll and 1000kgs/roll
    applicationMainly used in construction, handicrafts, weaving nets, communication equipment, medical equipment and brushes, cables, filters, high-pressure pipe industry,etc
    performancesuper in corrosion resistance
    Wire gaugeBWG-26BWG
    Wire diameter0.71mm-4.06mm

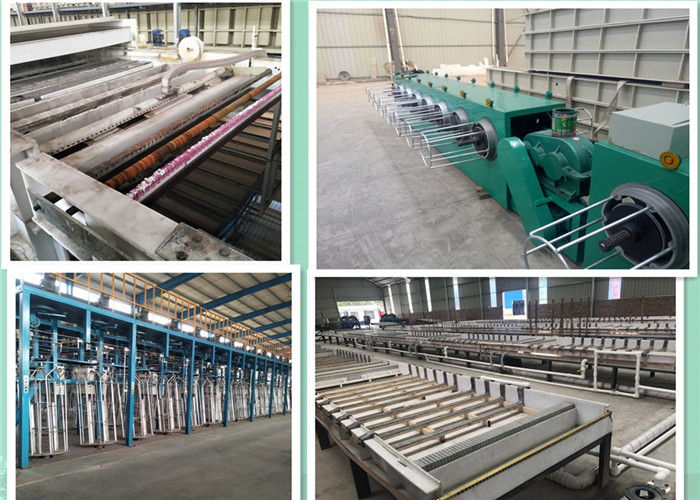

    Galvanized wire production line for binding wire Technology:


    “工”shape pay off stand -acid tank-washing-plating tank-cold water washing-passivation-drying-common wire collection machine.


    Electric Steel Binding Wire 0.7-2.0mm Galvanizing Line Wire Tasteless Pickling


    Pickling is advanced hydrochloric acid washing technology, suitable the steel wire should be cleaned quickly to meet the requirement of hot-dip galvanizing speed. The pickling system can ensure the reliable pickling efficiency, so that the steel wire can reach the clean surface before plating under the scouring of hydrochloric acid.Tasteless pickling tank made of PP composite material.Acid concentration can be controlled according to process requirements.Dimensions of tank: 19000×2200 (mm) effective pickling length: 13000mm

    Water cleaning tank: overflow cleaning method is adopted to clean residual impurities and residual acid on the surface of steel wire.The cleaning tank adopts 20mm

    High strength PP material welding production.

    Tank dimensions 1500×800×1100 (mm) circulating pump power: 2.2KW/380V.


    Electric Steel Binding Wire 0.7-2.0mm Galvanizing Line Wire Galvanizing Tank


    After 4 bath zinc plating, the zinc block melts and adsorbs to the surface of the wire ---- the brightness of the wire depends on the concentration of brightener.


    Electric Galvanizing Production Line Parameters:


    ProductLow carbon galvanized steel wire
    DV value≤60mm·m/min
    Zinc layer thickness≤20g/㎡
    Steel wire strength400~600MPa
    Wire diameter1.2mm
    Number of steel wire50lines
    Line spacing25mm, total wire spacing 1300mm
    Elevation elevation800mm
    Workshop lengthThe shortest length is 80m
    Waystraight forward
    ProductionElectroplating 4200 tons / year;
    Heating methodBath circulation, straight forward type

    Use energy

    power 380V 50Hz.

    Our Service:


    Guarantee time: 18 months.
    Spare parts: If non-quick wear part is broken, we can change for free.
    Installation&training:
    Complete installation instructions&circuit diagram.
    Send best engineer to your fatory for installation&training.
    After-sales:24 hours support service.
