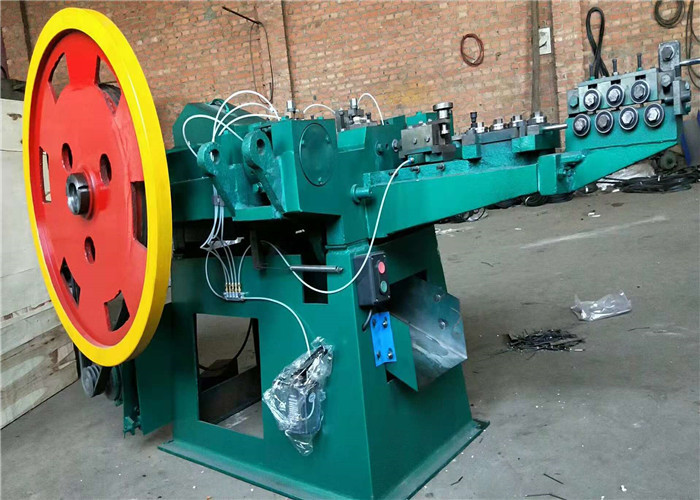

High Safety Blind Rivet Nail Making Machine/ Rivet Making Machine
Machine intorduction:
Nail making machine adopts plunger type stricture so as to ensure
the features such as high speed, low noise and less impact.Each
model machine could make different kinds size nail, the nail length
could adjust on machine and nail diameter need feed with related
diameter coil wire. Each nail making machine supply related nail
mould, nail knife and punch pin ect spare parts.
Wire nail making machine detail spercification :
| Technical data | Unit | Z94-6C | Z94-5C | Z94-4C | Z94-3C | Z94-2C | Z94-1C |
| Dia of nail max | mm | 6.5 | 5.5 | 4.5 | 3.4 | 2.8 | 1.6 |
| Dia of nail min | mm | 4.5 | 3.7 | 2.8 | 1.8 | 1.2 | 0.9 |
| Length of nail max | mm | 200 | 150 | 105 | 75 | 50 | 25 |
| Length of nail min | mm | 100 | 80 | 50 | 30 | 16 | 9 |
| Designed capacity | pcs/min | 160 | 200 | 280 | 320 | 350 | 450 |
| Motor power | kw | 11 | 5.5 | 4 | 3 | 2.2 | 1.5 |
| Weight(approx) | kg | 5000 | 2500 | 2000 | 1600 | 1400 | 1200 |
| Overall dimensions | mm | 3200*2200*2200 | 2500*1600*1700 | 2130*1560*1580 | 1830*1300*1470 | 1670*1240*1380 | 1440*1040*1270 |
Function:
1. This nail making machine adopts piston structure to ensure the
high working speed, low noise and less chance of impact
characteristics.
2. Especially it can make excellent quality YouMao nail and other
special-shaped nail, which are suitable for high-speed studs for
welding machine and nail gun.
Machine features
a. The nail making machine has the features of small in size, easy
to move, low noise, low power consumption, and it is easy to
operate, just need to change different size mould for making
different diameter nails, if you want to make different lengths of
nails for same diameter, no need to change anything.
b. The nail making machines can feed the materials automatically,
and making nail body straight, nail points sharp and symmetric,
nail caps round. Each nail made from this machine is excellent and
perfect.
c. The main components (shaft, cams and gear) of nail machine are
made of high quality steel, and durable in use, has good stability.
d. Free training of operating machines is offered for fee.
Steel wire nail making machine make process :
Steel wire --- wire drawing --- nail making --- nail polishing ---
finished nail.
FAQ:
Q: How many years are your company engaged in the wire mesh
machines?
A: More than 25 years. We have our own technology develop
department and testing deparment.
Q: Can your company send your engineers to my country for machine
installation, worker training?
A: Yes, our engineers went to more than 100 countries before. They
are very experience
Q: What's the guarantee time for your machines?
A: Our guarantee time is 2 years since the machine was installed in
your factory.
Q: Can you export and supply the customs clearance documents we
need?
A: We have much experience for exporting. And we can supply the CE
certificate, Form E, passport, SGS report etc, your customs
clearance will be no problem.
