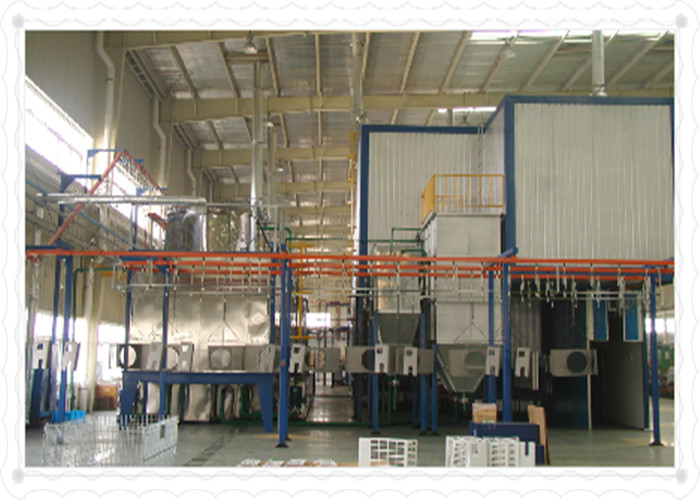

Automatic pvc painting production line for wire mesh fence panel

According to the technical parameters and process requirements provided by users,

the application of advanced coating technology at home and abroad and the company's many years of design

and manufacturing experience and customer feedback, the whole set of powder coating production line

equipment with reasonable configuration, excellent performance High quality, high requirements,

high efficiency and low consumption are the premise to ensure that the entire coating production line

runs well and is easy to operate, to meet the requirements of high-quality product coating production process,

so that the coated products reach the advanced level in the domestic industry, and at the same time Consider

reducing operating costs during the production process. The equipment configuration of this set of coating

production line scheme has been optimized and combined, and the key parts and key materials are all brand-name products.
Design guidelines: economic, practical, reliable, and beautiful.

The design, manufacture and installation of the equipment provided take into account the operator's production

environment and safety assurance during the long-term use of the equipment. The overall design complies with

the national regulations on the “Safety Regulations for Painting Operations”.

pvc painting production line comprehensive description

1. The main body of the drying tunnel adopts the profile skeleton and the inserting plate combined with

the thermal bridge type thermal insulation structure. Easy to transport and quick and easy to install.

2. When installing, apply aluminum silicate with a thickness of 10mm at the joint of the stove.

Outer corner of furnace body, rock wool in middle plug. Make sure there are no leaks in the wall joints.

The average temperature of the outer wall surface of the drying tunnel should not be higher than

the ambient temperature by 15 ° C ( when the ambient temperature is 20 ° C )

3. The assembly plate is divided into inner plate and outer plate. The inner plate is made of

galvanized steel plate δ = 0.8mm, the outer plate is made of δ = 0.6 color steel plate;

the bottom plate is made of galvanized steel plate δ = 1.0mm. Fill the inner and outer panels

with a bulk density: 100Kg / m3 of rock wool insulation, insulation thickness δ = 120mm.

4. Natural exhaust device: a set of natural exhaust devices are set at the air-break chamber mouth

to absorb the heat released by the oven at the air-break chamber mouth.

5. During the manufacturing and installation process, ensure that the appearance is flat and beautiful,

and there are no obvious uneven surfaces.

pvc painting production line process flow

1) Pretreatment process
The surface of the workpiece is chemically treated by spray pretreatment.

2) Spraying process
Automatic and manual electrostatic powder spraying process

3) Dehydration drying and coating curing process
The natural gas direct hot air circulation bridge drying tunnel is used for dehydration drying and coating curing.

4) Process operation mode
The spray and dry solidification process uses continuous flow operation with a light enclosed suspension chain.

5) Design production line suspension chain conveying speed: V=0.5~8m/min (adjustable)

6) Process flow:
Work on the line Degreasing Washing Washing Silane Washing Washing Dewatering Spraying Curing Curing Lower parts

pvc painting production line Parameters

Welded wire mesh panel painting line​ after sales service

1. Test the machine before shipment
2. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date
3. Within guarantee time, if any components are broken under normal condition, we can change for free
4. We can send our best technician to buyer’s factory for installation, debugging and training
5. Buyer need to undertake double-way air tickets, Visa, Worker salary USD100.0/ Day, Accommodations
