Dry Straight Line High Carbon Steel Wire Drawing Machine
Dry Straight Line High Carbon Steel Wire Drawing Machine Details
(1) The equipment contains the functions of human-machine dialogue,
over-temperature protection for motor, alarm for abnormal water
pressure, fault display.
(2) It’s kind of high-efficient machine with easy operation, high
degree of automation.
(3) Between the drawing process without intermediate pulley and the
guide wheel, it does not generate bending and torsion, and
convenient threading
(4) Straight line drawing machine suitable for drawing large
diameter, high strength and special shaped steel wire
(5) As the use of the frequency technology, changes in the larger
context of patts of the compression ratio to meet the wide range of
technology and high speed drawing.
(6) There is no relative sliding between wire and capstan. The
quality of finished wire is much better.
Dry Straight Line High Carbon Steel Wire Drawing Machine Composition
(1) LZ5/560 straight line wire drawing machine
(2) ZL320 tension frame
(3) Man-machine interface operation display screen
Dry Straight Line High Carbon Steel Wire Drawing Machine Driving Form
No. 1-4 adopts hard tooth surface gear reducer and combination of
narrow V belt drive
The rest adopt double cascade group narrow V belt transmission
Each end with efficient pneumatic brake, emergency stop continuous
wire.
Dry Straight Line High Carbon Steel Wire Drawing Machine Reducer
(1)The service life reducer is guaranteed for 5 years
(2)Reducer adopts special reducer for wire drawing machine
(3)The reducer adopts planetary reducer, the transmission is
especially stable
(4)The input shaft adopts unloading device and does not bear radial
force.
Dry Straight Line High Carbon Steel Wire Drawing Machine Rack Form
The main frame is steel structure welding parts
In front of the frame is equipped with water, electricity and gas
operating panel and instrument for emergency braking
Paint can be done according to customer requirements
Safety cover can be provided
Straight line wire drawing machine parameter:
| Capstan diameter | 560mm |
| Capstan number | 11 |
| Inlet wire diameter | Φ8.0mm |
| Outlet wire diameter | Φ2.0mm-Φ6.0mm |
| Tensile strength | ≤600mpa |
| Total compressibility | 90.53% |
| Average compressibility | 25.52% |
| Max. Speed | 12 m/s |
| Power | 18.5KW*11 (Frequency conversion motor )+22KW*11(inverter) |
| Mold size | Φ40mm×25 |
| Block type | Vertical ,tilted |
| Take-up wire | Elephant trunk type take-up system |
| Die box | The mould box is composed of mixer and water cooling(4 set) |
| Drawing drum | Cast steel ZG45, surface surfacing and spraying tungsten carbide,
HRC60. Surface roughness less than 0.8mm. |
| Mold box cooling | The drawing die is cooled by direct water inlet and water outlet,
and the cooling effect is very good. |
| Tension frame | Internal tension frame. |
| Main frame | Welding of steel plate and square pipe. |
| Stop brake | Pneumatic brake |
| Vacuuming design | Reserve suction hole |
| Lighting | Each stand with separate lighting. |
| Touch screen | Siemens |
| Low voltage electrical appliances | Delixi |
Straight line wire drawing machine features:
1) Easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic
parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no
pollution
4) As the use of the frequency technology, changes in the larger
context of parts of the compression ratio to meet the wide range of
technology and high speed drawing.
5) Good cooling system, final wire quality is very good.
(1)The service life reducer is guaranteed for 5 years
(2)Reducer adopts special reducer for wire drawing machine
(3)The reducer adopts planetary reducer, the transmission is
especially stable
(4)The input shaft adopts unloading device and does not bear radial
force.
Wire Drawing Production Line:
Steel in coil →Pull up wire rack→Derusting machine→bepowder→Straight Line Wire
Drawing Machine→Automatic take-up
Machine Packing & Loading:

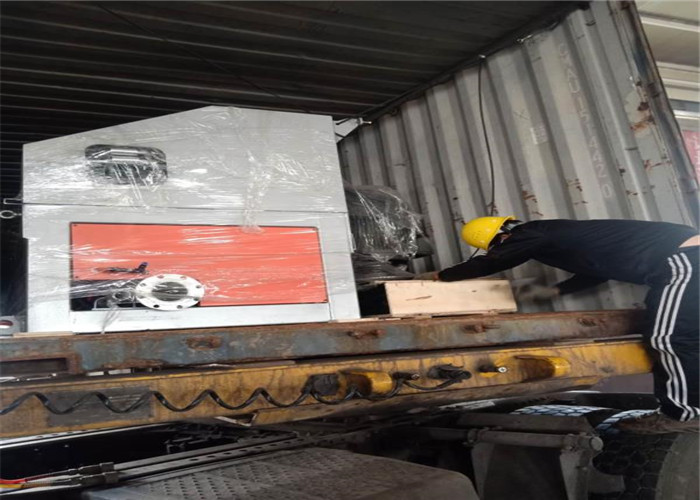

I. plastic film or bubble film which protect machine from rust on
the humid environment on sea
II. Spare parts are in wooden box
III. All devices will be fasten in container to avoid the shake on
road
Our company has advanced production equipment, first-class
technology and complete quality management system. With good
quality, reasonable price and excellent service, we have exported
to USA, Mexico, New Zealand, Middle East, Italy, Turkey, Southeast
Asia, Singapore,etc.
